industrial computer parameters
Brand：YASHITENG Aterial：Metal Memory: optional No RAM /2GB/4GB/*8GB* DDR3 System Memory Storage:optional No SDD /32GB/*64GB*/120GB /240GB SDD System: WIN10 pro Graphic: IntelHD Graphics Color: black (customizable color) Weight: about 5-7Kgs
System Parameter：
Intel Core i3-3217U（Dual core, 3MB cache, 1.80 GHz，TDP power consumption：17w） Storage space：No SDD/32G/64G / 128G / 256G Optional） internal storage：Optional No RAM/4GB/*8GB* DDR3 System memory
Parameters of LCD Touch screen：
Brightness：250cd/m2 Contrast Ratio：1000:1 Viewing Angle：Horizontal(left/right): 150°(75°/75°) Vertical(up/down): 150°(75°/75°) Response Time：30 (Typ.)(Tr+Td) (ms) Frame Rate：60Hz Color system：PAL/ NTSC Interface：1 x VGA + 1 x HDMI + 2 * COM (default 232 protocol interface) +1 x RJ45 + 4 * USB + 1 x audio power requirement of system：+ 12V DC power input Power adapter：input：100〜250VAC，50 / 60Hz output：60W Adapter（12V 5A） Working temperature：-20°C〜60°C Relative humidity：0％〜90％relative humidity, no condensatio Plug：AU,EU,USA,UK plug available Menu Languages：English,,Francais,Italiano,Deutsch,Espanol,Russian,Traditional Chinese, Simplified Chinese,etc VISA Hole distance：75*75mm
Unit of measure: mm

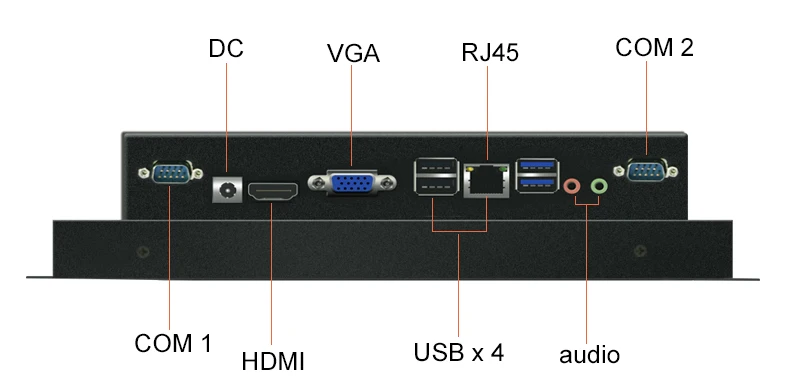

Product interface (support customization)
1 x VGA + 1 x HDMI + 2 * COM (default 232 protocol interface, please contact us to customize 485 protocol interface) +1 x RJ45 + 4 * USB + 1 x audio

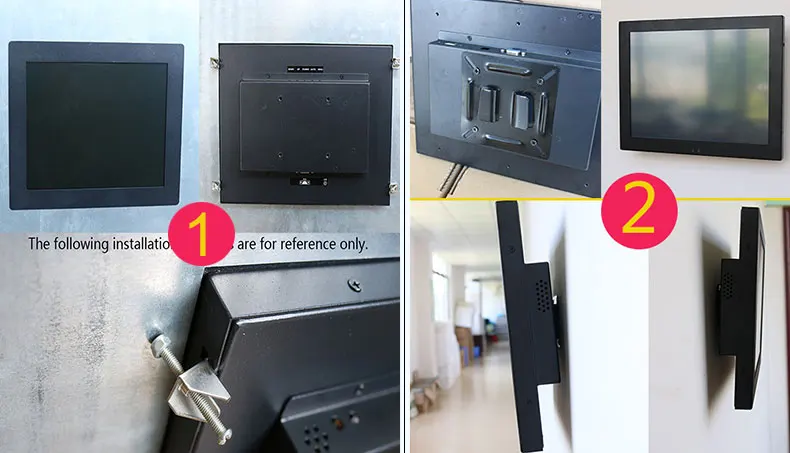

Installation Mode
There are eight small holes behind the product, the distance between the four installation holes inside is 75mm x 75mm, and the outside four mounting holes are 100mm x 100mm, equipped with wall hanging installation accessories and embedded installation accessories, the installation mode is flexible, and the following installation methods are for reference only.
Sensitive Touch Rapid Response
Resistive touch times > 35 million times, backlight life 50000h
Industrial-grade custom motherboard
A variety of industrial motherboards are available, with high-performance processors and low noise consumption. First choice for industrial use, stable operation in harsh environments.
The machine runs stably
24/7 stable operation Efficient work for a long time, fast cooling
Metal case, resist to high and low temperature environment
Industrial cold-rolled sheet metal shell, cold and high temperature resistance, as low as -20 ℃ ~ 60 ℃. Can effectively adapt to stable work in harsh environments
