Specification

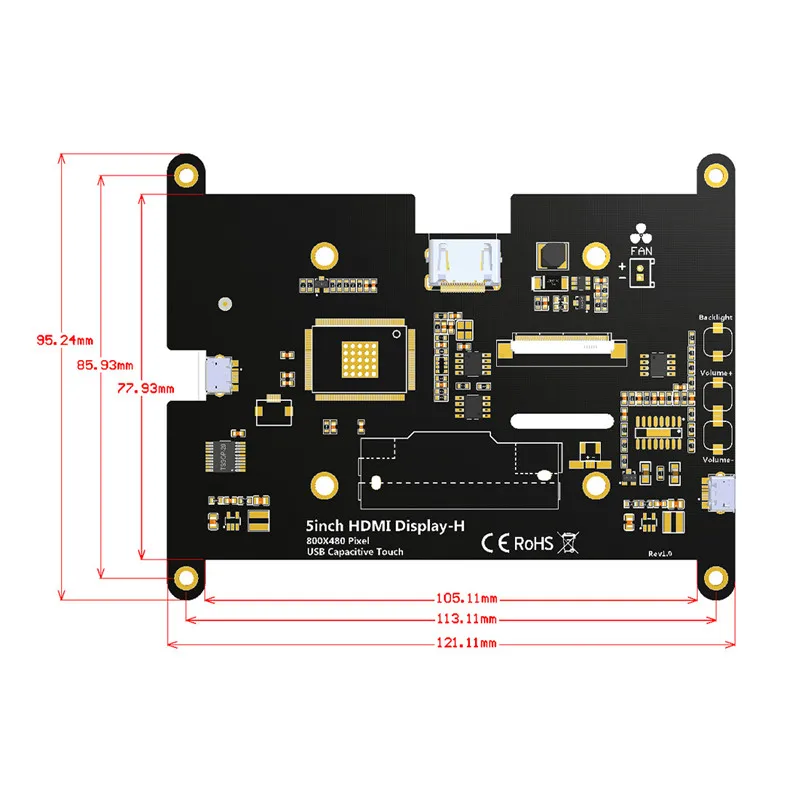

Model Name: 5'' HDMI Display-H Panel Size: 5 Inch Interface: HDMI-Compatible & USB Resolution: 800x480(dots) Touch Function: USB Capacitive Touch Speaker: Support Dimension: 121.11*95.24mm Net Weight: 300g
Function

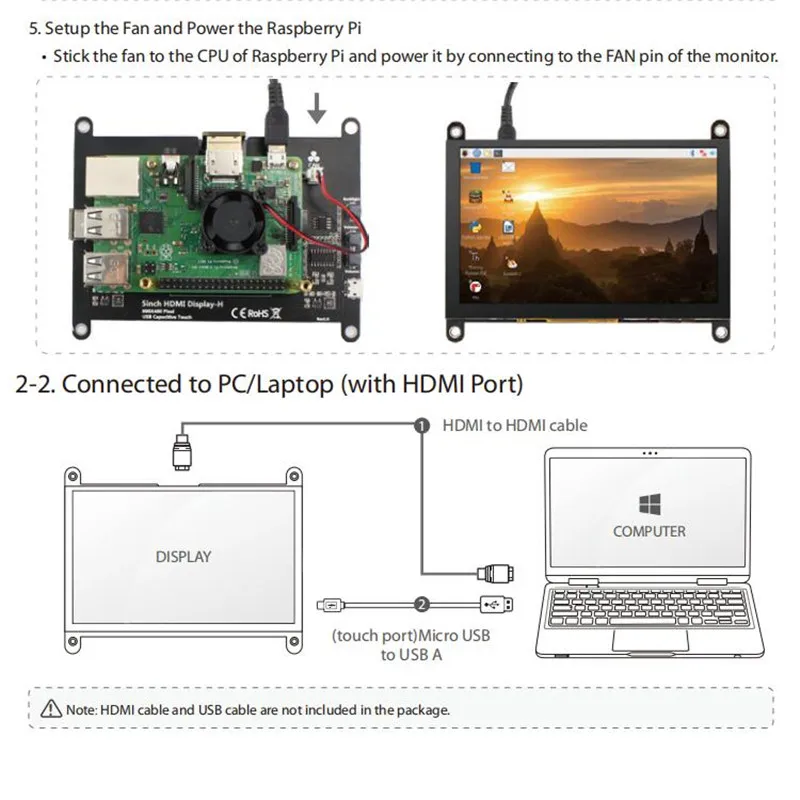

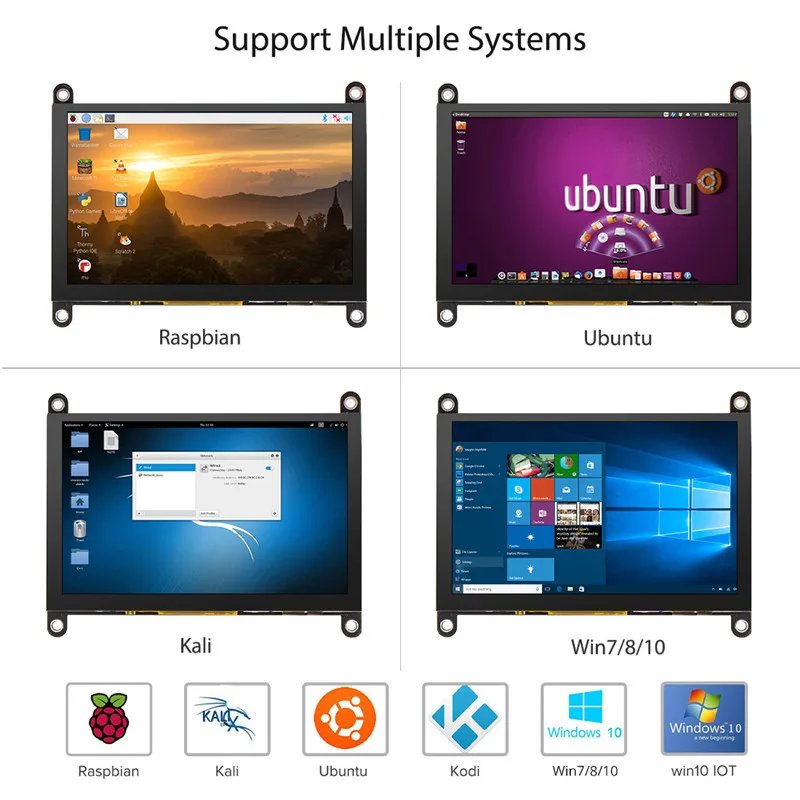

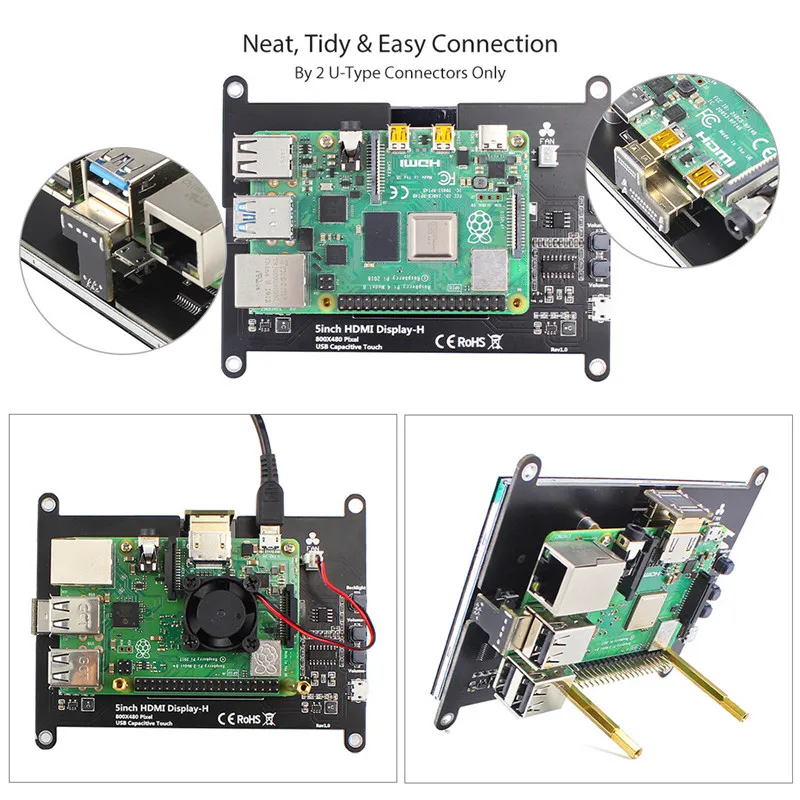

Raspberry Pi could fixed on the screen perfectly with hold stand. Add more the Speaker, can be adjusted the volume freely. With the black light switch and no need the drivers any more. 5’’ standard display, 800 × 480 resolution With capacitive touch screen, support touch control Support backlight control alone, the backlight can be turned off to save power Supports standard HDMI-Compatible interface input, compatible with and can be directly inserted with Raspberry Pi 4 Can be used as general-purpose-use for HDMI monitor, for example: connect with a computer HDMI as the sub-display (resolution need to be able to force output for 800 x480) Used as a raspberry pi display that supports Raspbian, Ubuntu, Kodi, win10 IOT. Work as a PC monitor, support XP,win7, win8, win10 system(do not support touch) CE, RoHS Certification
Package List

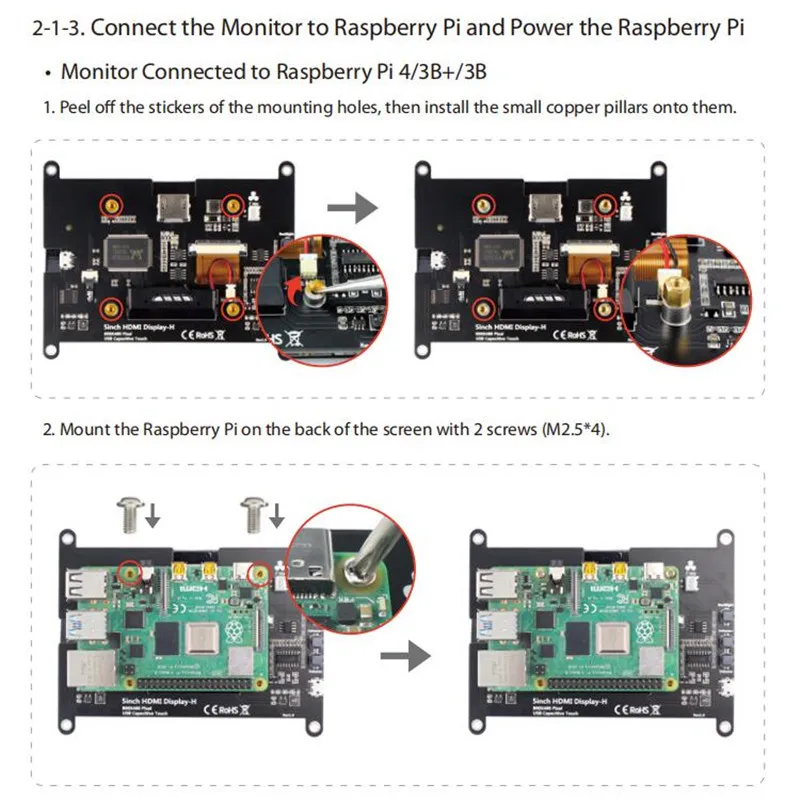

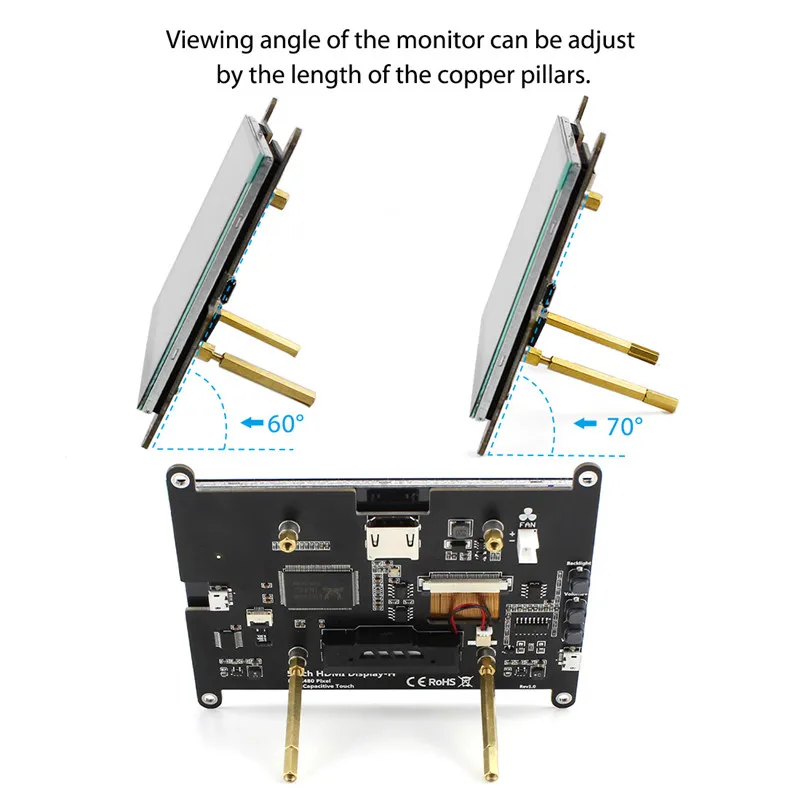

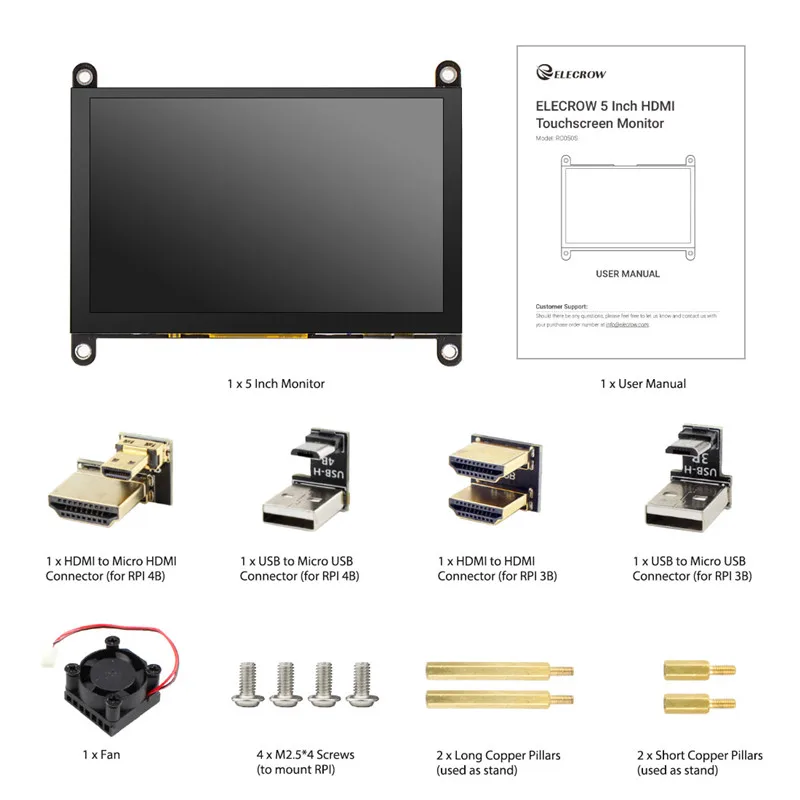

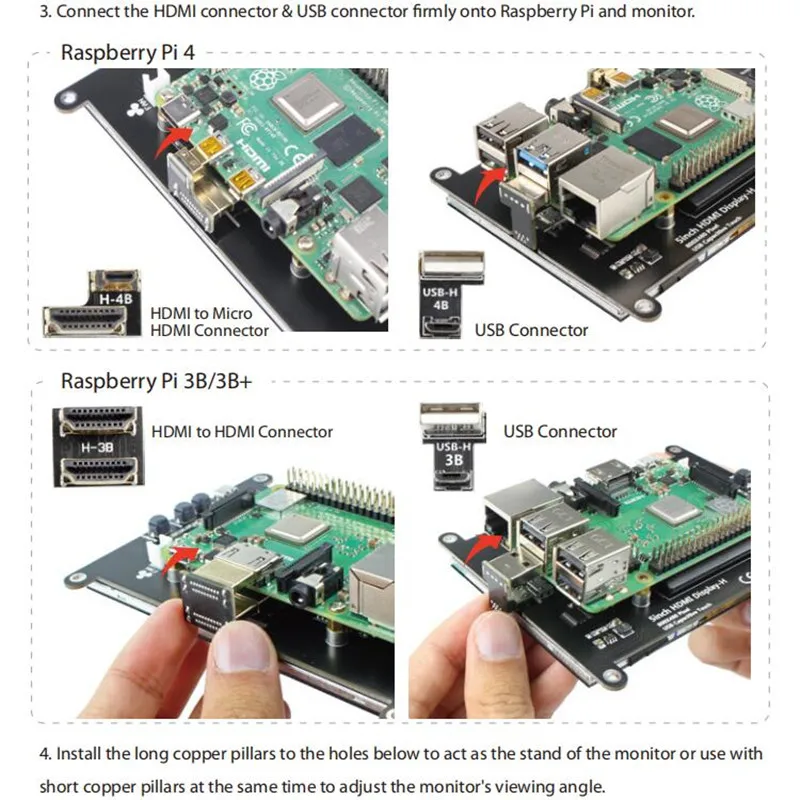

• 1 x 5 Inch Monitor • 1 x USB to Micro USB Connector (for RPI 4B) • 1 x HD to Micro HD Connector (for RPI 4B) • 1 x USB to Micro USB Connector (for RPI 3B) • 1 x HD to HD Connector (for RPI 3B) • 4 x M2.5*4 Screws (to mount RPI) • 4 x Small Copper Pillars (to support RPI) • 2 x Long Copper Pillars (used as stand) • 2 x Short Copper Pillars (used as stand) • 1 x Fan • 1 x User Manual
